Choosing a microscope for any specialist application can be daunting, and there is so much ‘expert’  advice out there on the Internet which allows anyone who wishes, to claim to be an instant ‘expert’. Both the directors of Brunel Microscopes worked for many years in pathology laboratories and are professionally qualified and the reputation of our company is of paramount importance to us. We will only advise you to buy what you need not what we would like to sell you. Microscopes are a bit like motor cars - they all have the same basic construction  -  4 wheels, an engine, gear box and steering wheel etc: Your choice of car depends on whether you want to win the next F1 race or go to the supermarket to do the weekly shop. Identifying and counting worm eggs is akin to the supermarket shop in microscopy terms and the instruments that we have listed below are more than able to do the job. . Having said that there are always those that like the look of a Bentley on the drive, and we cater for those as well.

Beginners Tip

You have the choice of one eyepiece (monocular), two (binocular) or three - with one for a camera (trinocular) Some points to think about:

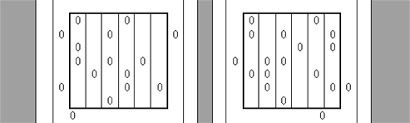

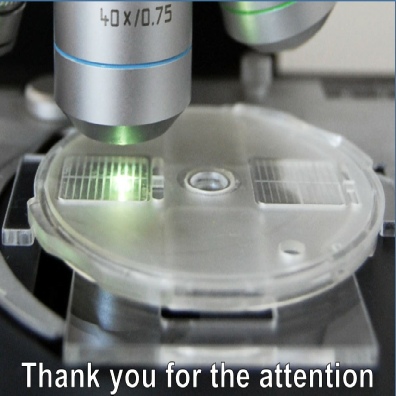

Flotech Counting Chamber

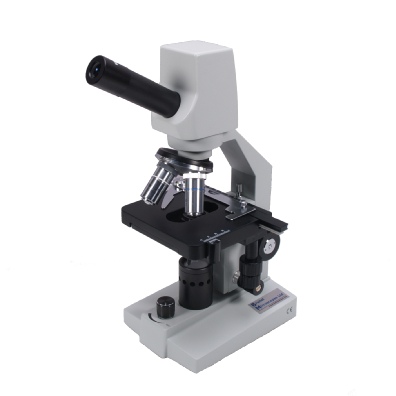

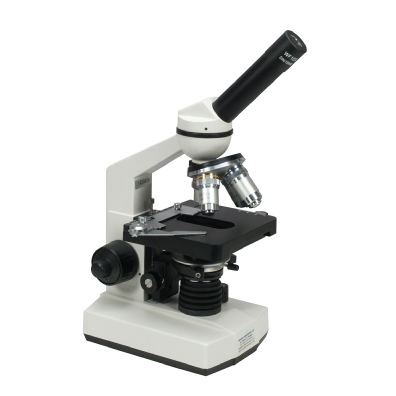

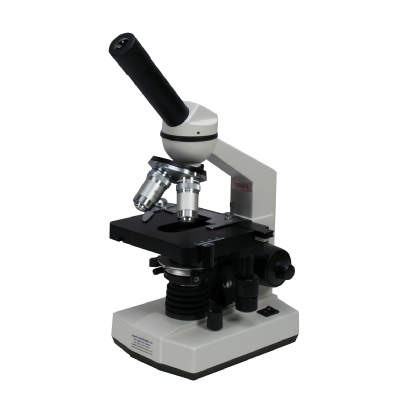

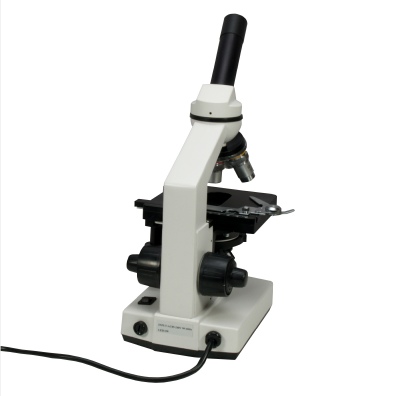

Brunel SP21 Monocular

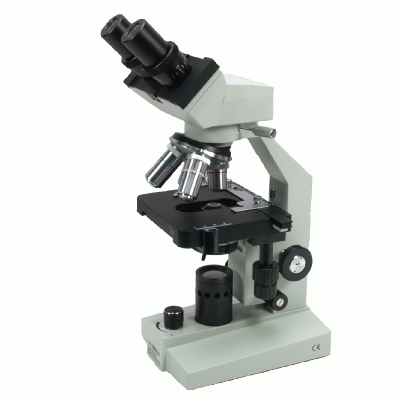

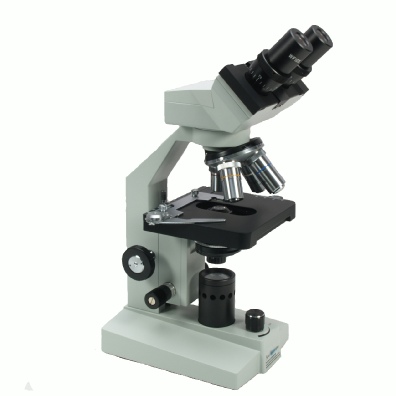

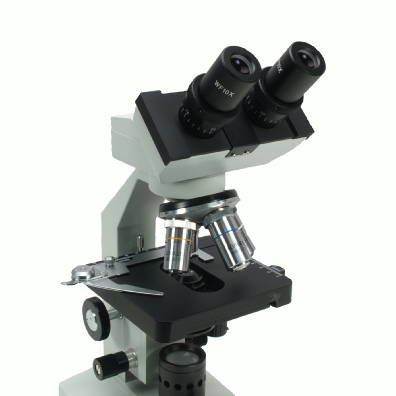

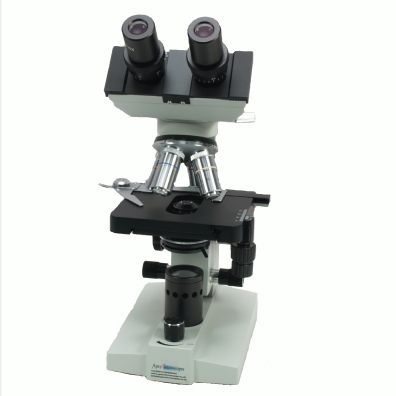

Brunel SP35 Binocular

The SP21 has 3 standard RMS screw thread objectives x4, x10 and x40 with 2 eyepieces x10 and x20 which gives a magnification range of x40 to x800.

The slide platform is a full mechanical stage that moves the slide by drop down coaxial controls.

The lighting is LED with brightness control and it has a full substage condenser with iris diaphragm. Coarse and fine focus controls with a safety stop to protect the slides.

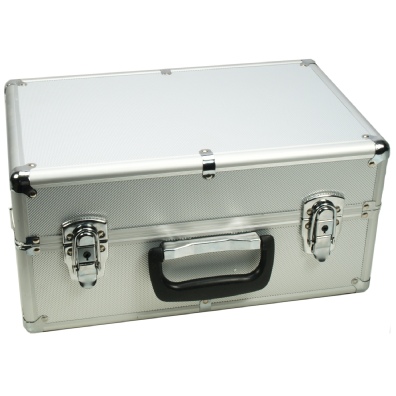

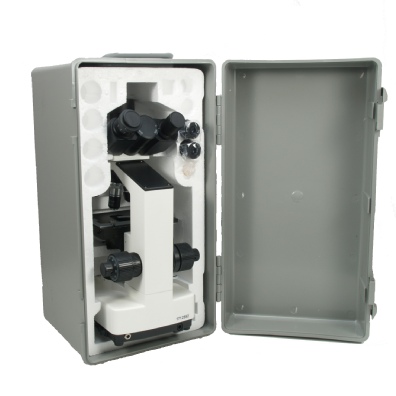

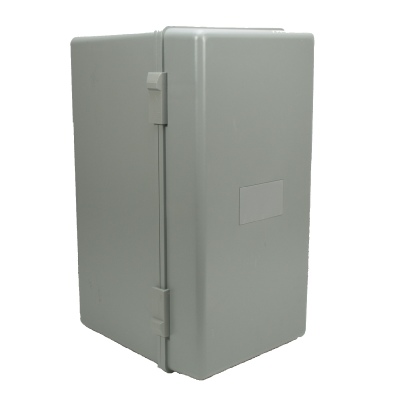

Aluminium case as an extra accessory.

Prices    Microscope only  - £106.66 + vat       Microscope + Worm Kit  - £140 + vat       Worm Egg Kit alone  -  £33.33 + vat            Microscope Case  -  £36.67 + vat





The SP35 is a binocular microscope with 2 x10, and 2 x20 eyepieces and four objectives x4, x10, x20 and x40 giving an overall magnification range of x40 to x800. The slide platform is a full mechanical stage that moves the slide by drop down coaxial controls.

The lighting is LED with brightness control and it has a full substage condenser with iris diaphragm.

Separate coarse and fine focus controls with a safety stop to protect the slides.

Prices:     Microscope only - £205.00 + vat Microscope + Worm Kit  -  £238.33 + vat     Worm Egg Kit only - £33.33 + vat

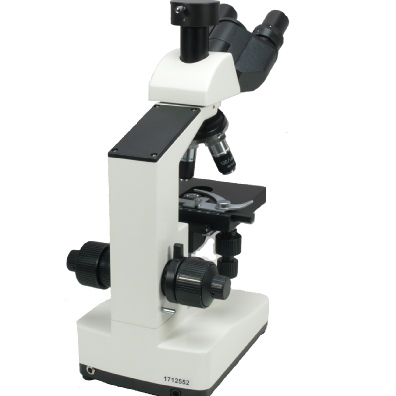

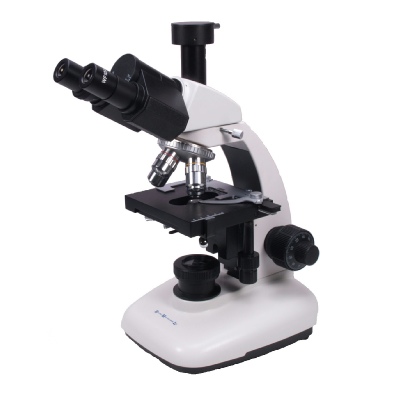

Brunel SP52 Trinocular

The SP52 is a trinocular microscope with 2 x10 and 2 x20 eyepieces and four objectives x4, x10, x20 and x40 giving an overall magnification range of x40 to x800. The slide platform is a full mechanical stage that moves the slide by drop down coaxial controls.

The lighting is LED with brightness control and it has a full substage condenser with iris diaphragm. Coaxial coarse and fine focus controls with a safety stop to protect the slides. Trinocular tube allows camera to be attached whilst still viewing. Carrying case included.

Prices:     Microscope only - £241.67 + vat Microscope + Worm Kit  -  £275.00 + vat                 Worm Egg Kit only - £33.33 + vat

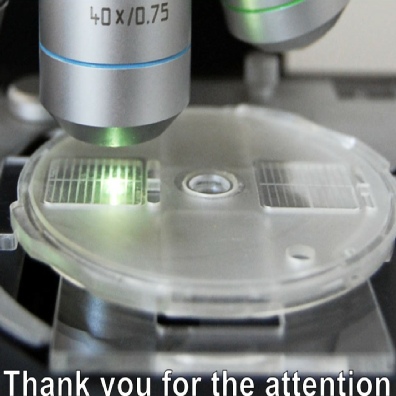

McMaster Counting Chamber

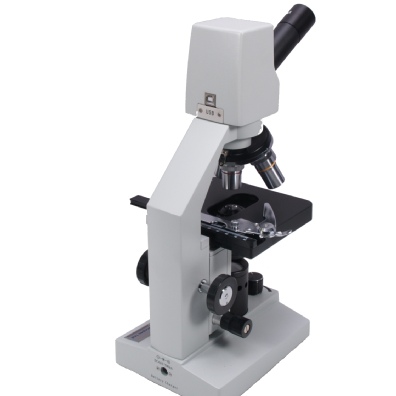

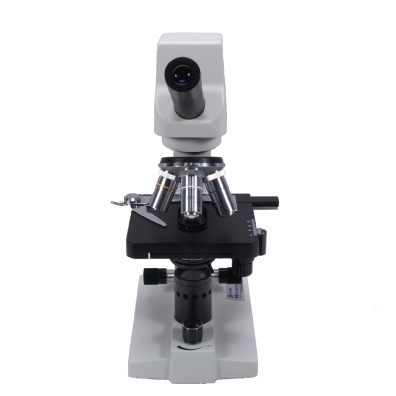

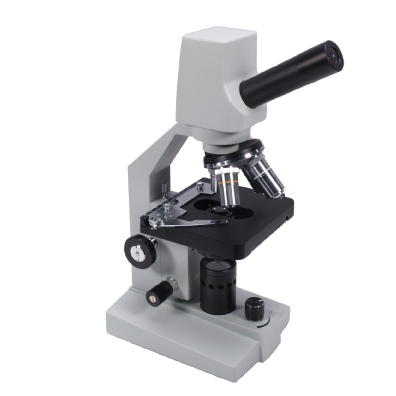

Brunel SP22D Digital

The SP22D is a monocular microscope with an inbuilt digital camera. The microscope connects by USB lead directly to a computer. Windows 7,8 or 10 (but not suitable for Apple MAC). All leads, software and IT support included.

Magnification range of x40 to x800. The slide platform is a full mechanical stage that moves the slide by drop down coaxial controls. The lighting is LED with brightness control and it has a full substage condenser with iris diaphragm.

Separate coarse and fine focus controls with a safety stop to protect the slides.

Prices:     Microscope only - £241.67 + vat Microscope + Worm Kit  -  £275.00 + vat               Worm Egg Kit only - £33.33 + vat


Beginners Tip

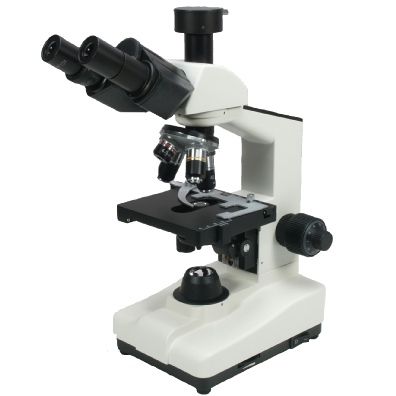

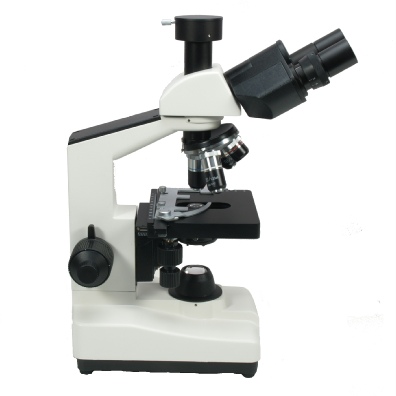

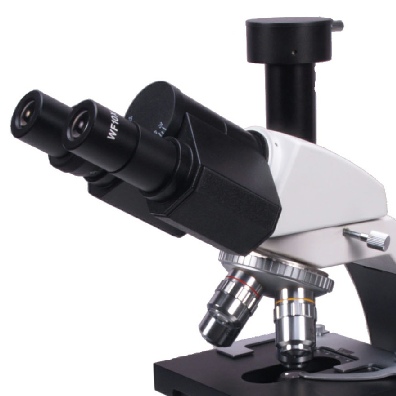

Brunel SP100 Trinocular

The SP100 is a professional standard trinocular microscope with plan achromatic objectives x4, x10, x40 and x100 (oil immersion) and wide field x10 eyepieces. Magnification range of x40 to x1000.

The slide platform is a full mechanical stage that moves the slide by drop down coaxial controls. The Kohler lighting is LED with brightness control and it has a fully adjustable substage condenser with iris diaphragm.

Coaxial coarse and fine focus controls with a safety stop to protect the slides. Carrying case included

Prices:     Microscope only - £595.00 + vat Microscope + Worm Kit  -  £628.33 + vat     Worm Egg Kit only - £33.33 + vat
